How To Test The Neutral Safety Switch In A 1998 Dodge Caravan

Introduction

Welcome to our guide on how to test the neutral safety switch in a 1998 Dodge Caravan. The neutral safety switch is an essential component of the vehicle’s transmission system. It ensures that the engine can only start in either neutral or park, preventing accidental engagement of the engine while the vehicle is in gear.

If your Dodge Caravan is experiencing issues with starting or shifting gears, a faulty neutral safety switch could be the culprit. By testing the switch, you can determine whether it is working correctly or needs to be replaced. Testing the neutral safety switch is a straightforward process that can be done with basic tools and minimal automotive knowledge.

In this guide, we will provide step-by-step instructions on how to test the neutral safety switch in your 1998 Dodge Caravan. We will cover what a neutral safety switch is, signs of a faulty switch, and the tools required for testing. By following the provided steps, you can diagnose any problems with your switch and take the necessary steps to resolve them.

It is important to note that before attempting any repairs or maintenance on your vehicle, you should consult the owner’s manual specific to your Dodge Caravan. This will ensure that you have the correct information and procedures for your particular model.

Without further ado, let’s dive into the world of neutral safety switches and learn how to test them in a 1998 Dodge Caravan.

What is a Neutral Safety Switch?

A neutral safety switch, also known as an inhibitor switch or range sensor, is a device located on the transmission of a vehicle. Its primary function is to prevent the engine from starting unless the transmission is in either the neutral or park position. This safety feature ensures that the vehicle cannot be accidentally started while in gear, which could result in unintended movement and potential accidents.

The neutral safety switch is interconnected with several components of the vehicle’s electrical system, including the starter motor and ignition switch. When the transmission is in neutral or park, the switch allows the electrical current to flow and engage the starter motor, starting the engine. However, if the transmission is in gear, the switch prevents the electrical current from reaching the starter motor, preventing the engine from starting.

In addition to its role in starting the engine, the neutral safety switch is also responsible for enabling the vehicle’s backup lights to illuminate when the transmission is in reverse. This serves as a visual indicator to both the driver and other road users that the vehicle is in reverse gear.

Neutral safety switches are crucial for ensuring the safe operation of a vehicle. Without a properly functioning switch, there is a risk of accidental engine engagement while the vehicle is in gear, posing a danger to both the driver and those around them. Therefore, it is important to regularly inspect and test the neutral safety switch to ensure its proper operation.

It’s worth noting that the location and design of the neutral safety switch may vary depending on the make and model of the vehicle. In the case of the 1998 Dodge Caravan, the switch is typically located on the side of the transmission housing, near the gear selector linkage.

In the next section, we will explore the common signs of a faulty neutral safety switch in a 1998 Dodge Caravan, which will help you determine whether you need to test and potentially replace the switch.

Signs of a Faulty Neutral Safety Switch

Recognizing the signs of a faulty neutral safety switch in your 1998 Dodge Caravan is crucial for diagnosing any issues with the switch. By being aware of these signs, you can determine whether the switch needs testing and potential replacement. Here are some common indicators that your neutral safety switch may be faulty:

1. Engine not starting: One of the most apparent signs of a faulty neutral safety switch is when your engine does not start. If you turn the key or press the start button, and nothing happens, it could be an indication that the switch is not allowing the current to flow to the starter motor.
2. No crank in park or neutral: Parallel to the first sign, if your engine only cranks when the transmission is in neutral or park, but not in other gears, it points towards a malfunctioning neutral safety switch.
3. Intermittent starting issues: A faulty neutral safety switch may cause intermittent starting problems. Your engine may start normally on some occasions but fail to start on others, indicating an inconsistent connection in the switch.
4. Problems shifting gears: The neutral safety switch is closely tied to the vehicle’s gear shifting mechanism. If you experience difficulties in shifting gears or the transmission feels stuck, it could be due to a faulty switch.
5. Backup lights not functioning: As mentioned earlier, the neutral safety switch is responsible for activating the backup lights when the transmission is in reverse. If your backup lights fail to illuminate when you shift into reverse, it could be a sign of a defective switch.
6. Check Engine Light (CEL) illuminated: In some cases, a faulty neutral safety switch can trigger the Check Engine Light on your dashboard. It is advisable to use an OBD-II scanner to retrieve the specific error codes related to the switch to pinpoint the issue accurately.

If you are experiencing any of these signs, it is advisable to test the neutral safety switch to confirm whether it is the cause of the problem. In the next section, we will discuss the tools required for testing and how to perform the test on your 1998 Dodge Caravan.

Tools Needed for Testing

Before you can begin testing the neutral safety switch in your 1998 Dodge Caravan, it’s important to gather the necessary tools. These tools will enable you to perform an accurate assessment of the switch’s functionality. Here are the tools you will need:

1. Multimeter: A multimeter is an essential tool for testing electrical circuits and measuring voltage, resistance, and continuity. It is used to verify the integrity of the neutral safety switch’s electrical connections.
2. Wrench or socket set: You may need a wrench or a socket set to detach any components that are obstructing access to the neutral safety switch. The specific size of the wrench or socket will depend on your vehicle’s setup.
3. Safety goggles: Safety goggles are recommended to protect your eyes from any debris that may dislodge during the testing process.
4. Rubber gloves: Rubber gloves can provide insulation and protect you against any potential electrical shocks while handling the wires and connections.
5. Owner’s manual or repair guide: While not a physical tool, having your vehicle’s owner’s manual or a repair guide specific to the 1998 Dodge Caravan can provide valuable information and guidance throughout the testing process.

Ensuring that you have these tools on hand before attempting to test the neutral safety switch will help you complete the process smoothly and efficiently. With the tools ready, you can move on to the actual testing procedure, which we will outline in the following steps.

Step 1: Park the Vehicle on a Level Surface

The first step in testing the neutral safety switch in your 1998 Dodge Caravan is to park the vehicle on a level surface. This ensures the stability of the vehicle and minimizes the risk of any accidents or injuries during the testing process. Here’s how to proceed:

1. Find a flat and level area to park your Dodge Caravan. Look for a spacious and safe location where there is enough room to work around the vehicle.
2. Make sure the transmission is in the “Park” position. This ensures the vehicle is securely immobilized and prevents any unintended movement during the testing process.
3. Engage the parking brake to further secure the vehicle and prevent it from rolling.
4. Turn off the engine and remove the key from the ignition. This avoids any accidental starting of the engine and ensures your safety while performing the test.

Parking the vehicle on a level surface is crucial for the accuracy of the test. It allows for reliable observations and prevents any interference that could affect the results. By following this initial step, you are setting the foundation for a smooth and trouble-free testing process.

Once you have safely parked your Dodge Caravan, you can proceed to the next step: locating the neutral safety switch. We will explore this in detail in the following section.

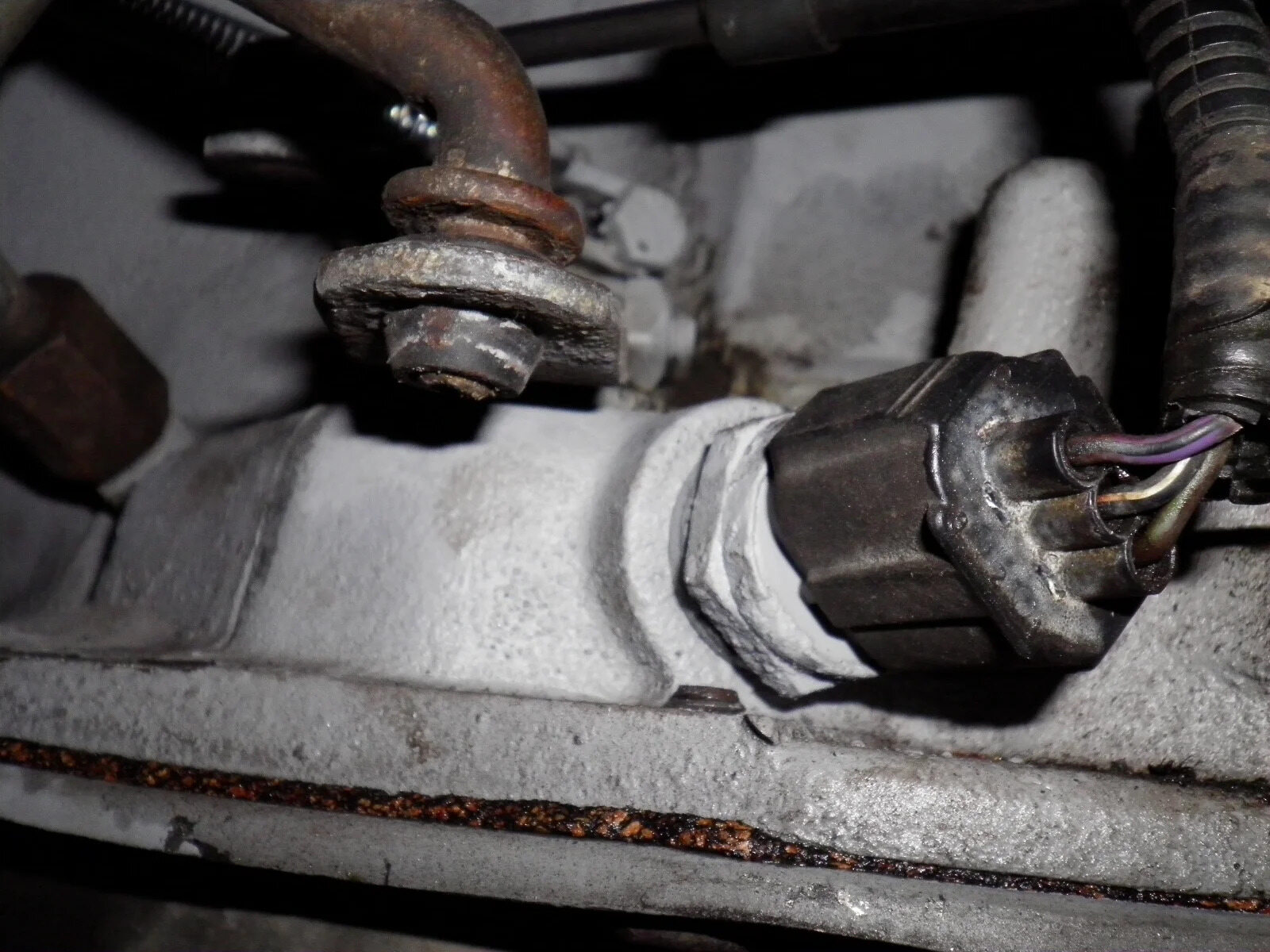

Step 2: Locate the Neutral Safety Switch

Once you have parked your 1998 Dodge Caravan on a level surface, you can proceed to locate the neutral safety switch. The switch is typically positioned on the side of the transmission housing, near the gear selector linkage. To find it, follow these steps:

1. Open the hood of your vehicle and secure it in place using the prop rod or latch.
2. Locate the transmission housing. You will likely find it at the back of the engine bay, towards the driver’s side.
3. Look for the gear selector linkage, which is connected to the transmission. The neutral safety switch is usually mounted nearby.
4. Inspect the side of the transmission housing and the vicinity of the gear selector linkage for a small component with electrical connectors. This is the neutral safety switch.

Keep in mind that the exact location and appearance of the neutral safety switch may vary depending on the specific model and year of your Dodge Caravan. It’s essential to consult the owner’s manual or a trusted repair guide to find accurate information and diagrams relating to your vehicle’s specific configuration.

Once you have successfully located the neutral safety switch, you are ready to proceed with the testing process. Now that you know where the switch is, you can move on to the next step: disconnecting the electrical connector. We will guide you through this step in the following section.

Step 3: Disconnect the Electrical Connector

With the neutral safety switch located, the next step in testing is to disconnect the electrical connector. This will allow you to isolate the switch and perform the necessary tests. Follow these steps to disconnect the electrical connector:

1. Ensure that the ignition is turned off and the key is removed from the vehicle.
2. Identify the electrical connector that is attached to the neutral safety switch.
3. Inspect the connector to identify any locking mechanisms or tabs securing it in place.
4. Depending on the design of the connector, gently press, pull, or squeeze the locking mechanism to release it.
5. Once the locking mechanism is released, carefully pull the connector away from the switch to disconnect it.

It is important to handle the connector with care to prevent any damage to the electrical contacts or the switch itself. Avoid using excessive force or pulling on the wires, as this can lead to breakage or poor connections. Take your time and be gentle during the disconnection process.

Once the electrical connector is successfully disconnected, you are now ready to proceed with testing the neutral safety switch. In the following steps, we will cover the different tests you can perform to assess the switch’s functionality.

Before moving on, it’s worth noting that some vehicles may have additional components or wiring harnesses that need to be detached to gain access to the neutral safety switch. If this is the case with your 1998 Dodge Caravan, consult the owner’s manual or a repair guide specific to your vehicle for the appropriate steps to follow.

Step 4: Test for Continuity Using a Multimeter

After disconnecting the electrical connector from the neutral safety switch, you can proceed with testing the switch using a multimeter. The multimeter will allow you to measure continuity, which determines if the electrical circuit is complete or if there is a break in the circuit. Follow these steps to test for continuity:

1. Set your multimeter to the continuity or ohms (Ω) setting. Consult the user manual of your specific multimeter for guidance on selecting the appropriate setting.
2. Take the two leads of the multimeter and connect one lead to each terminal of the neutral safety switch where the electrical connector was attached.
3. Read the display on the multimeter. If you see a value close to zero or hear a continuous beep, it indicates that there is continuity, and the switch is functioning correctly.
4. If the multimeter displays an “Open” or infinite resistance value, it means there is no continuity, indicating a fault in the switch that requires replacement.

When testing for continuity, it is essential to ensure that there is no power running through the circuit. Make sure the ignition is off and the key is removed to avoid any potential electrical hazards.

If your multimeter indicates no continuity, it is a clear indication that the neutral safety switch is faulty and needs to be replaced. However, if you do measure continuity but are still experiencing issues with starting or shifting gears, it is recommended to proceed with additional tests to further diagnose the problem.

Testing for continuity using a multimeter is an effective way to determine the functionality of the neutral safety switch. In the next step, we will discuss how to check for proper voltage signals to complete the comprehensive testing process. Continue to Step 5 to learn more.

Step 5: Check for Proper Voltage Signals

Once you’ve tested for continuity and determined that the neutral safety switch is functioning properly, the next step is to check for proper voltage signals. This will ensure that the switch is sending the correct signals to the vehicle’s electrical system. Follow these steps to check for proper voltage signals:

1. Set your multimeter to the voltage (V) setting. Refer to the user manual of your multimeter for specific instructions on selecting the voltage setting.
2. Connect the multimeter’s positive lead to a known good ground, such as the vehicle’s chassis or engine block.
3. Connect the multimeter’s negative lead to one of the terminals on the neutral safety switch where the electrical connector was attached.
4. Have an assistant or use a remote starter to engage the ignition switch to the “Start” position while monitoring the multimeter’s reading.
5. The multimeter should display a voltage reading close to 12 volts. This indicates that the switch is sending the proper voltage signal to the system when the ignition is in the “Start” position.
6. Repeat steps 3 to 5 for the other terminal on the neutral safety switch.

If the multimeter does not display the expected voltage reading when the ignition is in the “Start” position, it may indicate a problem with the neutral safety switch or the wiring connected to it. In such cases, it is recommended to consult a professional mechanic or refer to a repair guide specific to your 1998 Dodge Caravan for further troubleshooting steps.

Checking for proper voltage signals helps ensure that the neutral safety switch is effectively communicating with the vehicle’s electrical system. If the voltage signals are within the expected range, it indicates that the switch is functioning correctly, and any starting or shifting issues may be attributed to other components of the vehicle.

Proceed to the next step to learn how to inspect the neutral safety switch for physical damage or wear.

Step 6: Inspect for Physical Damage or Wear

After testing for continuity and checking for proper voltage signals, it’s important to inspect the neutral safety switch for any physical damage or signs of wear. Physical damage or wear can affect the switch’s performance and may require replacement. Follow these steps to inspect the switch:

1. Visually examine the neutral safety switch for any signs of corrosion, rust, or moisture. These can indicate exposure to the elements and potential damage to the switch.
2. Inspect the electrical terminals for any signs of damage, such as bent or broken pins, loose connections, or melted plastic. These issues can disrupt the electrical flow and affect the switch’s functionality.
3. Check the wiring harness connected to the switch for any signs of fraying, exposed wires, or loose connections. Damaged or improperly connected wiring can negatively impact the switch’s performance.
4. If you notice any significant physical damage or wear, it is recommended to replace the neutral safety switch. Consult a professional mechanic or refer to a repair guide specific to your 1998 Dodge Caravan for guidance on the replacement process.

Inspection of the neutral safety switch for physical damage or wear is an important step in the testing process. Even if the switch is functioning correctly electrically, physical damage can still impair its reliability and longevity. By carefully examining the switch and associated wiring, you can identify any issues that could potentially cause problems in the future.

If no physical damage or wear is detected during the inspection, and the switch has passed the continuity and voltage tests, you can conclude that the neutral safety switch is in good condition. However, if there are visible signs of damage or wear, it is recommended to replace the switch to ensure optimal performance and safety.

In the final step, we will summarize the process and provide some concluding remarks. Continue to Step 7 for the last part of the testing procedure.

Step 7: Replace or Repair the Neutral Safety Switch if Necessary

In the final step of testing the neutral safety switch in your 1998 Dodge Caravan, it’s time to determine whether it needs to be replaced or repaired. If any of the previous steps indicated a faulty switch or if you identified physical damage or wear during the inspection, it is essential to take appropriate action. Follow these guidelines to decide whether a replacement or repair is necessary:

1. If the neutral safety switch has failed the continuity test or if the multimeter displayed an “Open” or infinite resistance value, it is a clear indication that the switch is not functioning properly. In such cases, replacement is usually the best course of action.
2. If the voltage test showed that the switch is not sending the proper voltage signals when the ignition is in the “Start” position, it is recommended to consult a professional mechanic or refer to a repair guide specific to your vehicle for further troubleshooting steps. Repairing or adjusting the switch wiring may be possible in some cases.
3. If you identified physical damage or significant wear during the inspection, it is advisable to replace the neutral safety switch. Physical damage can compromise the switch’s performance and reliability, and replacing it will ensure optimal functionality.

When it comes to replacing the neutral safety switch, it is crucial to use a compatible and high-quality replacement part. Consult the owner’s manual or a trusted repair guide specific to your 1998 Dodge Caravan for the correct part information and installation instructions. If you are uncertain or not comfortable with the replacement process, it is recommended to seek assistance from a professional mechanic.

Remember, the neutral safety switch is a vital component of the transmission system, ensuring safe engine starting and proper gear shifting. By promptly addressing any issues with the switch, you can maintain a reliable and safe driving experience in your 1998 Dodge Caravan.

With that, you have reached the end of our guide on how to test the neutral safety switch in your 1998 Dodge Caravan. We hope that this step-by-step process has been helpful in diagnosing and addressing any problems with the switch. If you have any further questions or concerns, feel free to seek additional guidance from a professional or consult reputable resources. Safe driving and happy testing!

Conclusion

Testing the neutral safety switch in your 1998 Dodge Caravan is a relatively straightforward process that can help diagnose starting and shifting issues. By following the step-by-step instructions outlined in this guide, you can determine whether the switch is functioning properly or if it requires replacement or repair.

We began by understanding what a neutral safety switch is and its role in preventing accidental engine engagement. We then discussed the signs of a faulty switch, which included engine not starting, no crank in park or neutral, intermittent starting issues, problems shifting gears, backup lights not functioning, and an illuminated Check Engine Light.

With the necessary tools gathered, we proceeded to the testing process. We covered steps such as parking the vehicle on a level surface, locating the neutral safety switch, disconnecting the electrical connector, testing for continuity using a multimeter, checking for proper voltage signals, and inspecting for physical damage or wear.

If any issues were detected during the testing process or through physical inspection, we advised replacing or repairing the neutral safety switch accordingly. It is important to source a compatible and high-quality replacement part to ensure optimal performance and reliability.

Remember, proper functioning of the neutral safety switch is essential for the safe operation of your 1998 Dodge Caravan. Regularly testing and maintaining this crucial component will help prevent potential accidents and ensure smooth engine starting and gear shifting.

If you are unsure about any step or uncomfortable performing the tests yourself, it is recommended to seek guidance from a professional mechanic. Your safety and the proper functioning of your vehicle should always take priority.

We hope that this guide has provided you with the knowledge and confidence to test the neutral safety switch in your 1998 Dodge Caravan. By following the outlined steps and taking the necessary actions, you can keep your vehicle in excellent working condition and enjoy a reliable driving experience.
