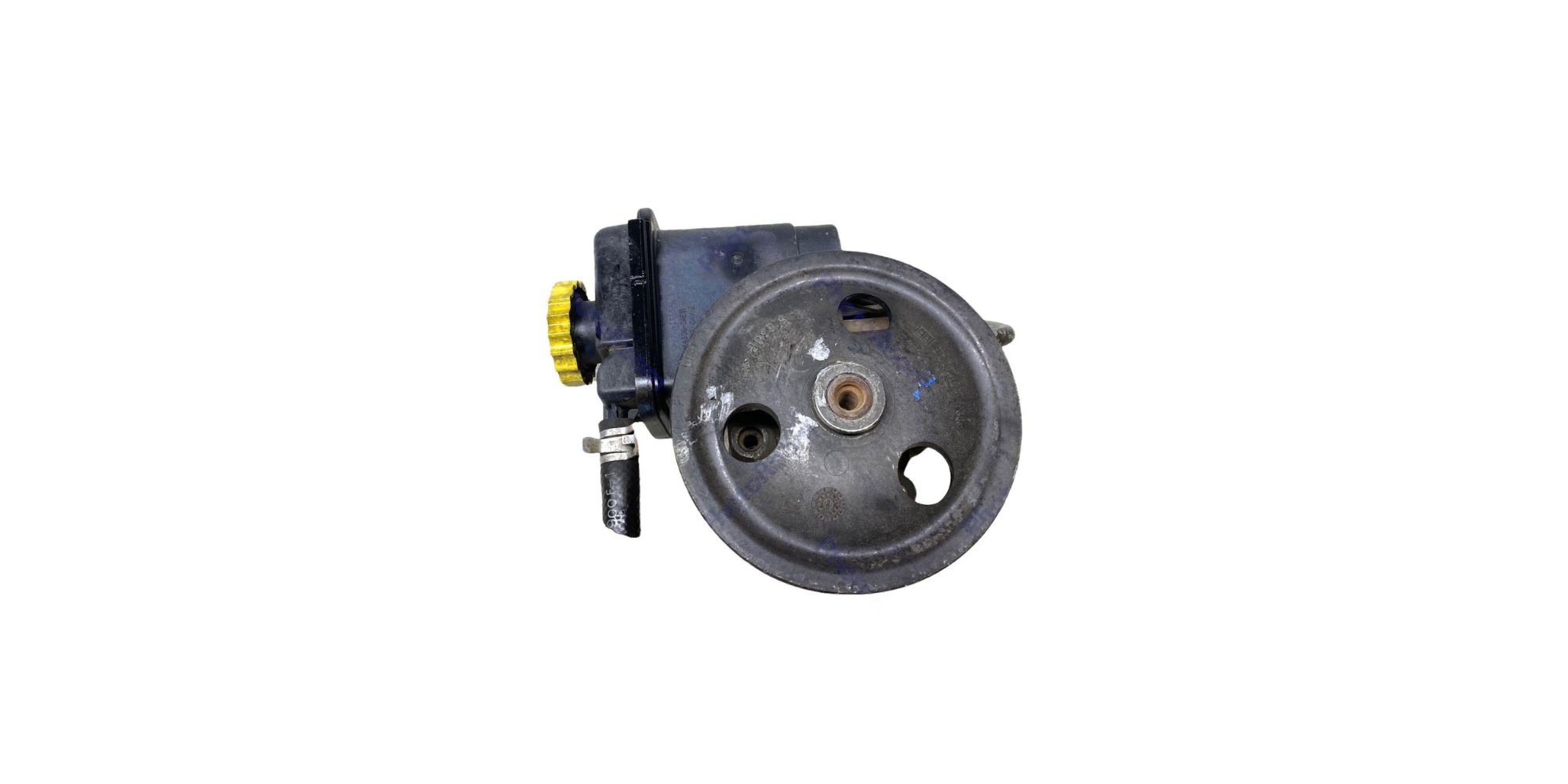

How To Remove The Power Steering Pump On A ’98 Caravan

Published: November 23, 2023

Modified: December 28, 2023

by Constancy Blackmon

Introduction

Welcome to our step-by-step guide on how to remove the power steering pump on a ’98 Caravan. The power steering pump is an essential component of your vehicle’s steering system, helping you to easily steer the car with minimal effort. Over time, the power steering pump may wear out or develop leaks, requiring replacement.

If you’re experiencing issues with your power steering pump, such as loud noises, difficulty in steering, or fluid leaks, it’s important to address the problem promptly. Removing the power steering pump might seem like a daunting task, but with the right tools and a little know-how, you can accomplish this task on your own. Not only will you save money on labor costs, but you’ll also gain the satisfaction of successfully completing a DIY project.

Before you begin, it’s important to gather the necessary tools and materials to ensure a smooth process. Having everything at hand will save you time and prevent frustration. Let’s go over the essential tools and materials you’ll need for this project.

Tools and Materials Needed

Before you start removing the power steering pump, make sure you have the following tools and materials ready:

Socket set with various sizes
Wrench set
Power steering pump pulley removal tool
Power steering pump replacement
New power steering fluid
Catch pan or bucket
Rags or towels
Jack and jack stands (optional)

The socket set and wrench set will allow you to remove the various bolts and fittings holding the power steering pump in place. It’s important to have a range of sizes as different components may require different sizes.

The power steering pump pulley removal tool is necessary to remove the pulley from the pump. This tool ensures that the pulley is safely and securely removed, without causing damage to the pump or other components.

For the replacement power steering pump, it’s crucial to get the correct model that is compatible with your ’98 Caravan. Investing in a high-quality pump will ensure optimal performance and longevity.

In addition, you’ll need a supply of new power steering fluid to refill the system after the pump is replaced. Be sure to check your vehicle’s specifications to determine the correct type of power steering fluid required.

A catch pan or bucket will come in handy to collect any fluid that may spill during the removal process. This will help prevent any mess and make cleanup easier.

Lastly, have a few rags or towels nearby to wipe up any spills or excess fluid. Keeping the workspace clean and free from debris will make the removal process more efficient.

Optional tools such as a jack and jack stands can be helpful if you need to raise the vehicle to access the power steering pump from underneath. This step is not always necessary, but it’s important to have these tools on hand just in case.

Step 1: Prepare the Vehicle

Before you begin removing the power steering pump, it’s important to take certain precautions and prepare the vehicle for the task at hand. Follow these steps to ensure a safe and efficient process:

Start by parking the car on a flat surface and engaging the parking brake. This will prevent the vehicle from rolling or shifting during the removal process.
Next, locate the power steering pump. In most ’98 Caravan models, the power steering pump is located at the front of the engine, near the serpentine belt.
Open the hood of the car and secure it with the hood support rod. This will provide you with unrestricted access to the engine compartment.
Disconnect the negative terminal of the battery. This step is essential to prevent any electrical accidents or short circuits during the removal process.
If necessary, raise the vehicle using a jack and secure it with jack stands. This will allow you to access the power steering pump from underneath the car if needed. Make sure to follow proper safety procedures when working under a vehicle.
Now, it’s time to gather the necessary tools and materials as discussed in the previous section. Having everything you need within reach will save you time and make the removal process smoother.

Taking the time to properly prepare the vehicle ensures a safe and organized work environment. It also helps prevent any accidental damage to surrounding components. Once the vehicle is fully prepared, you can proceed to the next step: accessing the power steering pump.

Step 2: Access the Power Steering Pump

Now that you have prepared the vehicle, it’s time to access the power steering pump. Follow these steps to gain access to the pump:

Identify the power steering pump location. In most ’98 Caravan models, the power steering pump is located at the front of the engine, near the serpentine belt. It is typically a cylindrical or rectangular-shaped component with multiple hoses and fittings attached to it.
Take a moment to familiarize yourself with the various hoses and fittings connected to the power steering pump. This will help you in later steps when it’s time to disconnect them. Make note of their locations and how they are secured.
Locate the belt tensioner. The power steering pump is typically driven by the serpentine belt, so you’ll need to release tension on the belt to remove the pump. The belt tensioner is a pulley that can be rotated to loosen or tighten the tension on the belt.
Using a wrench or socket, rotate the belt tensioner in the appropriate direction to release tension on the belt. This will vary depending on the specific ’98 Caravan model, so consult your vehicle’s manual or research online for the correct direction.
Once the tension is released, slip the serpentine belt off the power steering pump pulley and set it aside. Be sure to take note of the belt routing or take a picture for reference when reinstalling it later.
Inspect the power steering pump mounting bolts. There are typically two or three bolts securing the pump in place. Identify their locations and determine the appropriate size socket or wrench needed to remove them.

By following these steps, you have successfully gained access to the power steering pump and are now ready to proceed with the next steps of removing it. Take your time and be cautious when working around the belts and pulleys to avoid injury.

Step 3: Disconnect the Power Steering Hoses

With the power steering pump accessible, the next step is to disconnect the power steering hoses. Follow these steps to safely disconnect the hoses:

Using a wrench or socket, locate the fittings where the power steering hoses connect to the power steering pump. These fittings are typically secured with bolts or clamps.
Once you have located the fittings, place a catch pan or bucket underneath to collect any fluid that may spill during the disconnection process.
Using the appropriate size wrench or socket, loosen and remove the bolts or clamps securing the power steering hoses to the pump. Take care not to damage or strip the fittings as you remove them.
As you disconnect the hoses, fluid may leak out. Allow the fluid to drain into the catch pan or bucket. Make sure to have rags or towels nearby to wipe up any spills.
Once the hoses are detached from the pump, inspect them for any signs of damage or wear. If the hoses are old or damaged, it is recommended to replace them along with the power steering pump.
Cap the ends of the power steering hoses and the openings on the pump to prevent any contamination or fluid leakage.

Disconnecting the power steering hoses can be a messy process, so it’s important to take proper precautions and have the necessary tools and materials ready. By following these steps, you have successfully disconnected the power steering hoses and are ready to move on to the next step: removing the belt.

Step 4: Remove the Belt

Now that the power steering hoses are disconnected, the next step is to remove the serpentine belt from the power steering pump pulley. Follow these steps to safely remove the belt:

Inspect the serpentine belt for any signs of damage or wear. If the belt appears cracked, frayed, or excessively worn, it is recommended to replace it with a new one.
Locate the belt tensioner, which is responsible for maintaining the proper tension on the serpentine belt.
Place a wrench or socket on the belt tensioner and rotate it in the appropriate direction to release tension on the belt. This will vary depending on your ’98 Caravan model, so consult your vehicle’s manual or research online for the correct direction.
With the tension released, carefully slip the serpentine belt off the power steering pump pulley. Take note of the belt routing or take a picture for reference when reinstalling it later.
Inspect the belt for any signs of damage or wear. If there are any concerns about its condition, it is recommended to replace the belt with a new one.

Removing the serpentine belt gives you easier access to the power steering pump, allowing for a smoother removal process. Properly inspecting the belt before reinstalling it will help ensure optimal performance of your power steering system. With the belt removed, you’re ready to move on to the next step: removing the power steering pump mounting bolts.

Step 5: Remove the Power Steering Pump Mounting Bolts

With the serpentine belt removed, it’s time to remove the power steering pump mounting bolts. Follow these steps to safely remove the bolts:

Locate the mounting bolts that secure the power steering pump to the engine block. Depending on your ’98 Caravan model, there may be two or three bolts.
Using the appropriate size socket or wrench, carefully loosen and remove the mounting bolts. Take note of the location and order of the bolts as you remove them for easier reinstallation.
As you remove the bolts, ensure that you have a firm grip on the power steering pump to prevent it from falling or becoming damaged.
Once the bolts are removed, gently wiggle and pull the power steering pump away from the engine block. Take care not to damage any surrounding components.
If the power steering pump feels stuck, you may need to use a rubber mallet or gently tap it to break any seal or corrosion that may be holding it in place.

Removing the power steering pump mounting bolts requires caution and precision to prevent damage to the pump or other engine components. Taking note of the bolt locations and order will make it easier when reinstalling the pump. With the mounting bolts removed, you’re now ready to move on to the next step: removing the power steering pump itself.

Step 6: Remove the Power Steering Pump

Now that the mounting bolts are removed, it’s time to remove the power steering pump from the engine block. Follow these steps to safely remove the pump:

Gently pull the power steering pump away from the engine block, ensuring that all connections are fully disconnected.
If the pump feels stuck, you can use a rubber mallet or gently tap it to help loosen it from any seal or corrosion.
Once the pump is free from the engine block, carefully maneuver it out of the engine compartment.
Inspect the power steering pump and surrounding area for any signs of leaks, damage, or excessive wear. If any issues are discovered, it is recommended to address them before installing the new pump.

Removing the power steering pump requires precision and care to avoid any damage to the pump or surrounding components. Taking the time to inspect the old pump for any issues will help ensure the optimal performance of the replacement pump. With the old pump removed, you are now ready to move on to the next step: installing the new power steering pump.

Step 7: Install the New Power Steering Pump

Now that the old power steering pump is removed, it’s time to install the new one. Follow these steps to safely and securely install the new power steering pump:

Position the new power steering pump in the engine compartment, aligning it with the mounting holes on the engine block.
Ensure that all connections are fully disconnected and there is no interference with other components.
Gently maneuver the new pump into place, taking care not to damage any surrounding parts.
Align the mounting holes on the pump with the corresponding holes on the engine block.
Insert and hand-tighten the mounting bolts, ensuring that they are secure but not over-tightened.

Installing the new power steering pump requires precision and care to avoid any damage and ensure proper alignment. Take your time to ensure that all connections are properly fitted and aligned. With the new pump securely in place, you’re now ready to move on to the next step: reinstalling the mounting bolts.

Step 8: Reinstall the Mounting Bolts

With the new power steering pump in place, it’s time to reinstall the mounting bolts. Follow these steps to securely fasten the pump to the engine block:

Ensure that the new power steering pump is aligned properly with the mounting holes on the engine block.
Insert the mounting bolts into their corresponding holes and hand-tighten them.
Using the appropriate size socket or wrench, tighten the mounting bolts gradually and evenly. Be careful not to overtighten them, as this can damage the pump or the engine block.
Double-check that all bolts are securely tightened and that the pump is firmly attached to the engine block.

Reinstalling the mounting bolts is a crucial step to ensure the stability and functionality of the power steering pump. Take your time to tighten the bolts evenly and securely, but avoid overtightening. With the mounting bolts reinstalled, you’re now ready to move on to the next step: reconnecting the power steering hoses.

Step 9: Reconnect the Power Steering Hoses

With the new power steering pump securely in place, it’s time to reconnect the power steering hoses. Follow these steps to safely and properly reconnect the hoses:

Inspect the power steering hoses for any signs of damage or wear. If they appear worn or damaged, it is recommended to replace them with new hoses.
Remove the caps from the openings of the power steering pump and the ends of the hoses.
Align the fittings on the power steering pump with the corresponding fittings on the hoses.
Push the hoses onto the fittings and ensure they are fully seated. You may need to apply gentle pressure or rotate the hoses slightly to align them properly.
Once the hoses are aligned and seated, secure them with the appropriate bolts or clamps. Tighten the bolts or clamps securely, but be mindful not to overtighten.

Reconnecting the power steering hoses is an important step to ensure the proper functioning of the power steering system. Take your time to align the hoses properly and securely fasten them. With the hoses reconnected, you’re now ready to move on to the next step: installing the serpentine belt.

Step 10: Install the Belt

With the power steering hoses reconnected, it’s time to install the serpentine belt back onto the power steering pump pulley. Follow these steps to properly install the belt:

Refer to your vehicle’s manual or the belt routing diagram located on the engine compartment for the correct path of the serpentine belt.
Ensure that the belt tensioner is in the released position to provide enough slack to fit the belt on the power steering pump pulley.
Carefully route the serpentine belt around the other pulleys and accessories, following the designated path.
Ensure that the belt is properly seated on each pulley, ensuring it is aligned and securely in place.
Rotate the belt tensioner in the opposite direction of its release position, allowing the tensioner to apply the proper tension to the belt.
Double-check that the serpentine belt is properly seated on all the pulleys and is aligned according to the belt routing diagram.

Installing the serpentine belt correctly is crucial for the proper function of the power steering pump and other engine accessories. Take your time to ensure that the belt is routed correctly and securely seated on each pulley. With the belt installed, you’re now ready to move on to the next step: preparing the vehicle for testing.

Step 11: Prepare the Vehicle for Testing

Before testing the power steering system, it’s important to prepare the vehicle to ensure a safe and effective test. Follow these steps to properly prepare the vehicle:

Double-check that all connections, bolts, and fittings are securely tightened and properly aligned.
Inspect the area around the power steering pump for any fluid leaks. If you notice any leaks, address them before proceeding.
If the vehicle was raised on jacks or jack stands, carefully lower it to the ground using the appropriate procedure.
Reconnect the negative terminal of the battery that was previously disconnected. Ensure that it is securely fastened.
Check the power steering fluid level. If it is low, top it up with the recommended power steering fluid for your ’98 Caravan model.
Start the engine and let it run for a few minutes to allow the power steering system to build pressure.
Turn the steering wheel left and right a few times to release any air bubbles trapped in the system.

By properly preparing the vehicle, you are ensuring a safe and accurate test of the power steering system. Take the time to check all connections and fluid levels to prevent any potential issues. With the vehicle prepared, you’re now ready to move on to the final step: testing the power steering system.

Step 12: Test the Power Steering System

After completing the installation of the new power steering pump and preparing the vehicle, it’s time to test the power steering system to ensure everything is functioning properly. Follow these steps to test the power steering system:

Start the engine and let it idle.
Turn the steering wheel in both directions, from lock to lock, to observe the responsiveness and smoothness of the steering.
Pay attention to any unusual noises, such as grinding or whining, as these could indicate a problem with the power steering system.
Check for any fluid leaks around the power steering pump or hoses.
Test the power steering system while driving the vehicle at different speeds and in different conditions, such as on straight roads and during turns.
Make note of any abnormal behavior, such as difficulty in steering, excessive play in the steering wheel, or uneven steering effort.
If any issues or abnormalities are detected during the test, it is advisable to consult a professional mechanic or revisit the installation steps to ensure everything was done correctly.
If the power steering system operates smoothly and without any issues, you have successfully installed and tested the new power steering pump.

Testing the power steering system is essential to ensure its proper function and to identify any potential problems. By carefully monitoring the steering performance, listening for unusual noises, and inspecting for leaks, you can address any issues before they escalate. If everything is in good working order, you can be confident in the successful installation of the new power steering pump.

Conclusion

Congratulations! You have successfully completed the process of removing and replacing the power steering pump on your ’98 Caravan. By following the step-by-step guide outlined above, you have safely and efficiently tackled this DIY project.

The power steering pump plays a vital role in your vehicle’s steering system, and addressing any issues promptly is essential for optimal performance and safety. By removing the old pump and installing a new one, you have restored the functionality of the power steering system, allowing for smoother and easier steering on the road.

Throughout the process, it’s important to prioritize safety and take the necessary precautions. From preparing the vehicle to testing the power steering system, every step is crucial for a successful replacement. Always refer to your vehicle’s manual and consult professionals if you encounter any difficulties or uncertainties.

Remember to take note of proper belt routing, securely tighten all bolts and fittings, and inspect for any fluid leaks. Testing the power steering system is the final step to ensure that everything is functioning as it should. Pay close attention to the steering responsiveness, any unusual noises, and potential leaks during the test.

If you encounter any issues or abnormalities during the test, it’s recommended to seek professional assistance or revisit the installation steps to ensure everything was done correctly. Your safety and the proper functioning of your vehicle’s power steering system are of utmost importance.

By successfully replacing the power steering pump, you have not only saved money on labor costs but also gained valuable knowledge and a sense of accomplishment from completing a DIY automotive project. Now you can enjoy smooth and effortless steering in your ’98 Caravan once again!
