How To Remove Rear Spark Plugs On A 2006 Dodge Grand Caravan

Introduction

Welcome to our guide on how to remove the rear spark plugs on a 2006 Dodge Grand Caravan. Spark plugs play a vital role in the combustion process of your vehicle’s engine, igniting the air-fuel mixture and ensuring proper performance. Over time, spark plugs can become worn out or develop deposits that can hinder their effectiveness. This is why it’s important to periodically replace them to maintain the optimal functioning of your engine.

The 2006 Dodge Grand Caravan is a popular and reliable minivan with a powerful engine. However, accessing and removing the rear spark plugs can be a bit trickier compared to the front ones due to the tight space in the engine compartment. Nevertheless, with the right tools and a step-by-step approach, you can successfully remove and replace the rear spark plugs without any hassle.

In this guide, we will walk you through the process of removing the rear spark plugs on a 2006 Dodge Grand Caravan. We will provide a detailed explanation of the tools and supplies you will need and guide you through each step of the process. Whether you are an experienced DIYer or a beginner, this guide will help you get the job done.

Before we dive into the specific steps, it’s important to ensure your safety and the safety of your vehicle. Make sure to park your Dodge Grand Caravan on a flat surface and engage the parking brake. Allow the engine to cool down before attempting any work. Additionally, always refer to your vehicle’s owner’s manual for specific instructions and specifications.

Tools and Supplies Needed

Before you begin removing the rear spark plugs on your 2006 Dodge Grand Caravan, it’s important to gather all the necessary tools and supplies. Here is a list of items you will need:

• Socket wrench set
• Spark plug socket
• Extension bar
• Flexible joint
• Torque wrench
• Gap gauge
• Dielectric grease
• Anti-seize compound
• New spark plugs (if you plan to replace them)

The socket wrench set, along with the spark plug socket, extension bar, and flexible joint, will be used to remove the ignition coil and access the spark plugs. The torque wrench is necessary for properly tightening the spark plugs during reinstallation.

It’s also a good idea to have a gap gauge on hand to check the gap of the new spark plugs, as well as dielectric grease to ensure a secure connection between the ignition coil and spark plug. Additionally, using an anti-seize compound on the threads of the spark plugs can prevent them from seizing and make future removal easier.

If you are planning to replace the spark plugs, make sure to have the appropriate ones for your 2006 Dodge Grand Caravan. Refer to your vehicle’s owner’s manual or consult with an auto parts store to ensure you get the correct spark plugs for your specific engine model.

Having all the necessary tools and supplies ready before starting the process will save you time and prevent any interruptions during the removal of the rear spark plugs.

Step 1: Gather Materials and Prepare Vehicle

To successfully remove the rear spark plugs on your 2006 Dodge Grand Caravan, it’s important to gather all the necessary materials and prepare your vehicle. This step ensures that you have everything you need and sets the stage for a smooth and efficient process.

Here are the steps to complete this stage:

1. Assemble the required tools and supplies: Before you begin, make sure you have all the tools and supplies mentioned in the previous section. This includes a socket wrench set, spark plug socket, extension bar, flexible joint, torque wrench, gap gauge, dielectric grease, anti-seize compound, and new spark plugs if you plan to replace them.
2. Park your vehicle on a flat surface: Find a level and secure area to perform the task. Ensure that the parking brake is engaged to prevent any unintended movement of the vehicle. Safety is a priority, so take the necessary precautions to avoid accidents or damage.
3. Allow the engine to cool down: Give the engine enough time to cool down before starting the work. Working on a hot engine can be dangerous and may lead to burns or other injuries. It’s best to wait at least an hour after driving the vehicle to ensure the engine is cool to the touch.
4. Refer to your owner’s manual: Familiarize yourself with the specific instructions provided in your vehicle’s owner’s manual. This will help you understand the location of the rear spark plugs and any other relevant details specific to your vehicle.

By completing these preparatory steps, you’ll have all the necessary tools, a suitable work environment, and a good understanding of your vehicle’s specifications. This sets the foundation for a successful rear spark plug removal process on your 2006 Dodge Grand Caravan.

Step 2: Access the Rear Spark Plugs

Accessing the rear spark plugs on a 2006 Dodge Grand Caravan can be a bit challenging due to the limited space in the engine compartment. However, with the right approach, you can successfully reach and remove the rear spark plugs. Follow these steps:

1. Open the hood: Pull the release lever inside your vehicle to open the hood and secure it with the prop rod. This will provide you with clear access to the engine compartment.
2. Locate the ignition coil: The ignition coils are responsible for delivering the electrical current to the spark plugs. In order to access the rear spark plugs, you’ll need to remove the ignition coils first. Locate the ignition coil that corresponds to the rear cylinders.
3. Remove the bolt securing the ignition coil: Use a socket wrench and the appropriate socket to remove the bolt that secures the ignition coil. Set the bolt aside in a safe place, as you’ll need it for reinstallation later.
4. Disconnect the electrical connector: Gently push down on the tab or squeeze the sides of the connector to release it, then pull it away from the ignition coil. This will allow you to completely disconnect the electrical connection.
5. Remove the ignition coil: Carefully and slowly wiggle the ignition coil while pulling it straight out. Be gentle to avoid damaging the coil or its connections. Set the ignition coil aside in a safe place.
6. Repeat the process for other rear ignition coils (if applicable): If your 2006 Dodge Grand Caravan has multiple rear ignition coils, repeat steps 3 to 5 to remove them all. Keep track of which coil corresponds to which cylinder for easy reinstallation.

By following these steps, you’ll be able to access the rear spark plugs of your 2006 Dodge Grand Caravan. Stay tuned for the next section on how to remove the rear spark plugs once the ignition coils have been successfully removed.

Step 3: Remove the Ignition Coils

After accessing the rear spark plugs on your 2006 Dodge Grand Caravan, it’s time to remove the ignition coils so you can reach the spark plugs. Follow these steps:

1. Inspect the ignition coil: Before removing it, take a moment to inspect the ignition coil. Look for any signs of damage, such as cracks or corrosion. If you notice any issues, it’s best to replace the ignition coil to ensure optimal performance.
2. Safely remove the ignition coil: Grasp the ignition coil firmly and gently twist it back and forth while pulling it straight out. Be careful not to damage the coil or its electrical connections. If necessary, use a gentle rocking motion to loosen the coil from its seat.
3. Set the ignition coil aside: Once removed, safely place the ignition coil in a clean and secure location. It’s important to keep them organized, especially if you have multiple ignition coils to remove. This will make the reinstallation process easier later on.
4. Repeat the process for all remaining ignition coils: If your 2006 Dodge Grand Caravan has multiple ignition coils, repeat steps 2 and 3 to remove them all. Take note of the cylinder each ignition coil corresponds to for proper reinstallation.

By following these steps, you can safely remove the ignition coils from your 2006 Dodge Grand Caravan. Remember to handle the ignition coils with care to prevent any damage, as they are crucial components of the ignition system. In the next section, we will guide you through the process of removing the rear spark plugs themselves.

Step 4: Remove the Rear Spark Plugs

Now that you have successfully removed the ignition coils, you can proceed to remove the rear spark plugs from your 2006 Dodge Grand Caravan. Follow these steps:

1. Inspect the spark plug well: Before removing the spark plug, take a moment to inspect the well for any dirt, debris, or oil. If you notice any contaminants, clean the area around the spark plug using compressed air or a soft-bristle brush. This ensures a clean work environment and prevents any debris from falling into the cylinder.
2. Prepare your spark plug socket: Take your spark plug socket and attach it to the extension bar. Ensure that the socket fits securely onto the spark plug for proper removal.
3. Loosen the spark plug: Insert the spark plug socket into the spark plug well and gently turn it counterclockwise. Use caution and avoid applying excessive force, as you do not want to strip or damage the threads.
4. Remove the spark plug: Once the spark plug is loosened, continue turning it counterclockwise until you can lift it out of the cylinder head. Be careful not to drop the spark plug or allow any debris to fall into the cylinder.

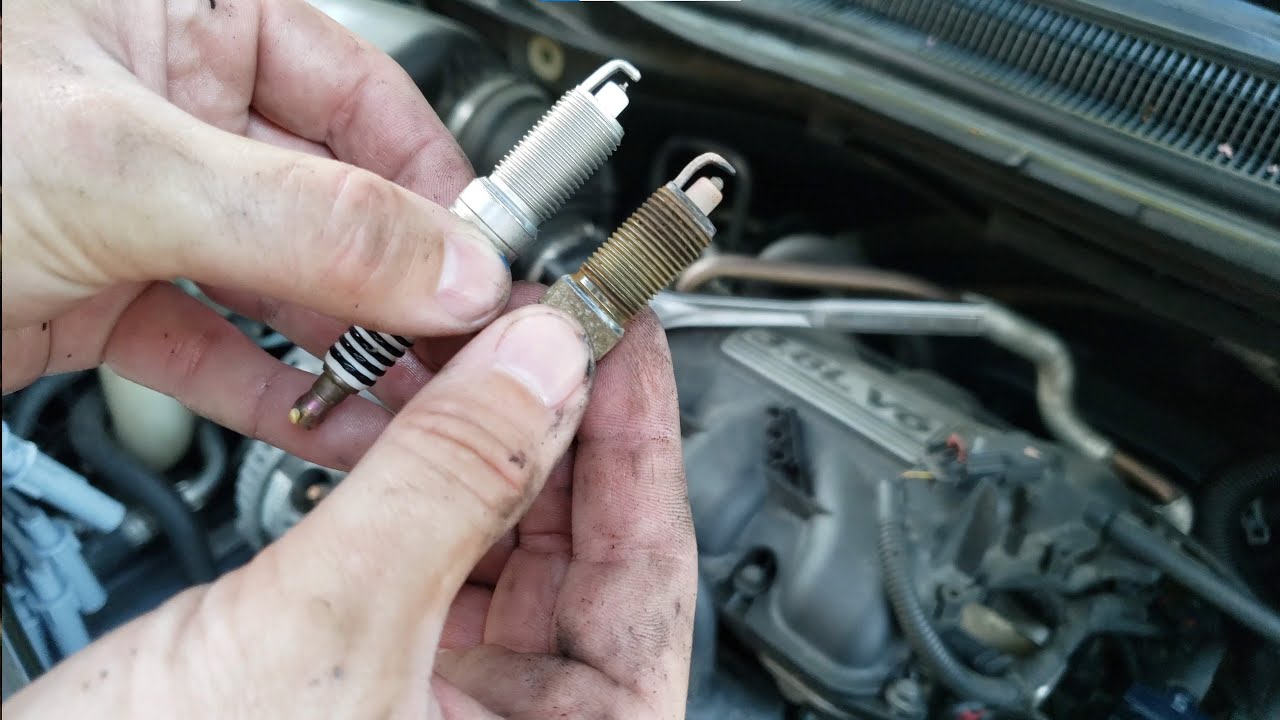

5. Inspect the removed spark plug: Take a moment to examine the condition of the removed spark plug. Look for any signs of wear, such as erosion or excessive deposits. This can indicate potential issues with the engine’s performance or the need for maintenance.
6. Repeat the process for other rear spark plugs (if necessary): If you have multiple rear spark plugs, repeat steps 2 to 5 to remove them all. Take note of the cylinder each spark plug corresponds to for proper reinstallation.

By following these steps, you can successfully remove the rear spark plugs from your 2006 Dodge Grand Caravan. Remember to handle the spark plugs with care, as they are delicate components. In the next section, we will discuss the optional step of inspecting and replacing the spark plugs, depending on their condition.

Step 5: Inspect and Replace the Spark Plugs (optional)

After removing the rear spark plugs from your 2006 Dodge Grand Caravan, it’s a good idea to inspect them and determine if replacement is necessary. Follow these steps to inspect and potentially replace the spark plugs:

1. Inspect the condition of the spark plugs: Take a close look at each removed spark plug. Check for signs of wear, such as excessive electrode erosion, deposits, or fouling. If a spark plug appears worn or damaged, it is recommended to replace it with a new one.
2. Check the spark plug gap: Using a gap gauge, measure the gap between the center and ground electrodes of the spark plug. Refer to your vehicle’s specifications or the instructions provided by the spark plug manufacturer to ensure that the gap is within the correct range. If the gap is too wide or narrow, adjust it using a gap tool.
3. Apply anti-seize compound (optional): If you are reusing the existing spark plugs, it is a good practice to apply a small amount of anti-seize compound on the threads before reinstalling them. This will prevent the spark plugs from seizing or getting stuck in the future.
4. Apply dielectric grease (optional): Prior to reinstallation, dab a small amount of dielectric grease on the inside of the ignition coil boot. This will help create a good electrical connection between the coil and the spark plug, ensuring consistent performance.
5. Replace the spark plugs (if necessary): If any of the removed spark plugs showed signs of wear or damage, it is recommended to replace them with new ones. Ensure that the new spark plugs are the correct type and have the correct gap for your specific 2006 Dodge Grand Caravan model.

By following these steps, you can inspect the condition of the spark plugs and determine if replacement is required. Replacing worn or damaged spark plugs is essential for maintaining optimal engine performance and fuel efficiency. In the next section, we will cover the process of reinstalling the ignition coils.

Step 6: Reinstall the Ignition Coils

Now that you have inspected and potentially replaced the spark plugs on your 2006 Dodge Grand Caravan, it’s time to reinstall the ignition coils. Follow these steps to properly reinstall the ignition coils:

1. Take the ignition coil: Retrieve the ignition coil that corresponds to the cylinder you are working on.
2. Apply dielectric grease: Dab a small amount of dielectric grease on the inside of the ignition coil boot. This will help improve the electrical connection between the coil and the spark plug.
3. Align and insert the ignition coil: Align the ignition coil with the spark plug well and gently push it straight down. Make sure the boot sits snugly and securely over the spark plug.
4. Repeat the process for all ignition coils: If you have multiple ignition coils, repeat steps 1 to 3 to reinstall each ignition coil in its respective cylinder. Take care to install them in the correct order.
5. Reattach the electrical connector: Once the ignition coils are in place, reconnect the electrical connectors by carefully pushing them back onto the coils. Ensure that each connector is securely attached and clicks into place.
6. Insert and tighten the bolt: Insert the bolt that secures the ignition coil and use a socket wrench to tighten it. Be careful not to overtighten, as it can damage the threads. Refer to your vehicle’s specifications or the owner’s manual for the correct torque specification.

By following these steps, you can successfully reinstall the ignition coils on your 2006 Dodge Grand Caravan. Proper installation ensures a reliable electrical connection and helps maintain the performance of your engine. In the final step, we will discuss the process of repeating these steps for the remaining rear spark plugs (if necessary).

Step 7: Repeat the Process for Other Rear Spark Plugs (if necessary)

If your 2006 Dodge Grand Caravan has multiple rear spark plugs, it is important to repeat the previous steps for each remaining spark plug. Follow these steps to ensure all rear spark plugs are properly installed:

1. Identify the next spark plug: Determine which cylinder’s spark plug you will be working on next. It is crucial to keep track of their order for proper installation.
2. Remove the ignition coil: Repeat steps 2 and 3 from the earlier sections to remove the ignition coil that corresponds to the next spark plug you are working on.
3. Remove the spark plug: Follow steps 4 and 5 to safely remove the spark plug from the cylinder.
4. Inspect, gap, and replace (if necessary): Once the spark plug is removed, inspect its condition, check the gap, and replace it if necessary, as outlined in Step 5.
5. Reinstall the spark plug: Carefully insert the spark plug back into the cylinder and tighten it by gently turning it clockwise. Avoid overtightening, as it can damage the threads.
6. Reinstall the ignition coil: Repeat steps 6 and 7 to reinstall the corresponding ignition coil for the spark plug you just replaced.
7. Repeat for remaining spark plugs: Proceed with the same process for the remaining rear spark plugs, one at a time, until all spark plugs and ignition coils are securely reinstalled.

By following these steps, you can properly reinstall all the rear spark plugs on your 2006 Dodge Grand Caravan. Take your time and ensure that every step is executed correctly. Once the process is complete, you can close the hood and proudly enjoy the improved performance of your vehicle.

Remember, if you encounter any difficulties during the process or if you are unsure about any step, it is always a good idea to consult your vehicle’s owner’s manual or seek professional assistance.

Conclusion

Congratulations! You have successfully learned how to remove the rear spark plugs on a 2006 Dodge Grand Caravan. By following the steps outlined in this guide, you can efficiently access, remove, inspect, and replace the rear spark plugs to ensure optimal engine performance.

Throughout the process, remember to prioritize safety by parking your vehicle on a flat surface, allowing the engine to cool down, and referring to your owner’s manual for specific instructions. Gathering the necessary tools and supplies, accessing the rear spark plugs, removing the ignition coils, and inspecting and replacing the spark plugs (if necessary) are all essential steps in the process.

By maintaining the spark plugs in your 2006 Dodge Grand Caravan, you can ensure proper ignition, fuel efficiency, and overall engine health. Regularly inspecting and replacing spark plugs is an important part of vehicle maintenance and can help prolong the life of your engine.

Remember, if you ever feel unsure or encounter any difficulties during the process, it’s always a wise decision to consult a professional or refer to your vehicle’s official documentation.

We hope this guide has been helpful in assisting you with removing the rear spark plugs on your 2006 Dodge Grand Caravan. With proper care and maintenance, your vehicle will continue to provide reliable performance and smooth rides for years to come.
