Introduction

Welcome to the guide on how to replace the coil pack on a Grand Caravan! If you’re experiencing engine misfires, poor performance, or a malfunctioning ignition system, it may be time to replace the coil pack in your Dodge Grand Caravan. The coil pack is an essential component of the ignition system, responsible for delivering the high voltage needed to ignite the fuel mixture in each cylinder.



Replacing the coil pack can improve engine performance, fuel efficiency, and overall drivability of your Grand Caravan. It’s a relatively straightforward process that can be done with basic tools and some mechanical know-how. In this guide, we’ll walk you through the step-by-step process to successfully replace the coil pack on your Grand Caravan.



Before we begin, it’s important to note that this guide is intended for informational purposes only. If you’re not confident in your abilities or have limited experience working on vehicles, it’s always best to consult a professional mechanic. Now, let’s get started!



Step 1: Gather the Necessary Tools

Before you begin the process of replacing the coil pack, it’s essential to gather all the necessary tools. Having the right tools on hand will make the job easier and more efficient. Here’s a list of tools you’ll need:

  1. Socket set with various sizes
  2. Ratchet handle
  3. Extension bar
  4. Spark plug socket
  5. Flathead screwdriver
  6. Needle-nose pliers
  7. Torque wrench
  8. A new coil pack

Ensure that you have the correct socket sizes to fit the bolts and screws that secure the coil pack and any other components that need to be removed. It’s also a good idea to have a spark plug socket as you might need to remove the spark plug wires connected to the coil pack. A flathead screwdriver and needle-nose pliers will be handy for loosening and disconnecting certain parts.



Additionally, you’ll need a torque wrench to properly tighten the bolts when reassembling the components. This is crucial to prevent any potential leaks or damage to the coil pack or surrounding parts. Lastly, make sure to have a new coil pack that is compatible with your Grand Caravan’s make and model.



Having all these tools ready before you start will save you time and prevent frustration during the replacement process.



Step 2: Prepare the Vehicle

Before diving into the coil pack replacement, it’s important to properly prepare your Grand Caravan to ensure a smooth and efficient process. Here’s what you need to do:

  1. Turn off the engine: Begin by turning off the engine and allowing it to cool down completely. Working on a cool engine is crucial for your safety and prevents any accidental burns.
  2. Disconnect the battery: Locate the battery under the hood and disconnect the negative terminal. This step is essential to prevent any electrical shocks while working on the ignition system.
  3. Locate the coil pack: Identify the location of the coil pack in the engine compartment. It is typically found near the top of the engine, mounted on the ignition module or cylinder head.
  4. Clean the surrounding area: Use a rag or shop towel to clean any dirt, dust, or debris around the coil pack and surrounding components. This will prevent any contaminants from entering the engine during the replacement process.
  5. Take pictures or notes: Before removing any wires or components, take pictures or make notes of the current configuration. This will help you during the reinstallation process to ensure everything is connected correctly.

Following these steps will ensure that your Grand Caravan is properly prepared for the coil pack replacement. It’s important to take your time during this stage to set yourself up for success in the later steps.



Step 3: Locate the Coil Pack

Now that you have prepared your vehicle, it’s time to locate the coil pack. Finding the coil pack is vital as it varies in location depending on the make and model of your Grand Caravan. Follow these steps to locate the coil pack:

  1. Refer to the owner’s manual: The owner’s manual is an invaluable resource that provides detailed information about your vehicle’s components and their locations. It should have a specific section on the ignition system that will help you find the coil pack.
  2. Identify the engine: Depending on the specific model and year of your Grand Caravan, there may be different engine options. Ensure that you identify the correct engine type in your vehicle.
  3. Inspect the engine compartment: Open the hood and inspect the engine compartment. Look for any wires or components that lead to the ignition system. The coil pack is typically located on or near the engine block.
  4. Follow the spark plug wires: The coil pack is connected to the spark plug wires, which transfer the electrical current to the spark plugs. Follow these wires from the spark plugs to their point of connection, which should lead you to the coil pack.
  5. Take note of the coil pack’s physical appearance: The coil pack is a square or rectangular component with several electrical connectors and mounting bolts. Familiarize yourself with its appearance to ensure you can identify it accurately.

Once you have successfully located the coil pack, you’re ready to move on to the next step: removing the old coil pack from your Grand Caravan.



Step 4: Remove the Old Coil Pack

With the location of the coil pack identified, it’s time to remove the old coil pack from your Grand Caravan. Follow these steps to ensure a proper removal:

  1. Disconnect the electrical connectors: Start by carefully disconnecting the electrical connectors from the coil pack. Depending on the design, you may need to press a release tab or squeeze the connector to remove it. Take note of the specific connectors and their positions for later reinstallation.
  2. Remove the mounting bolts: Use the appropriate socket and ratchet to remove the mounting bolts that secure the coil pack to the engine block. Typically, there are two to four bolts that need to be removed. Place the bolts in a safe location to avoid misplacement.

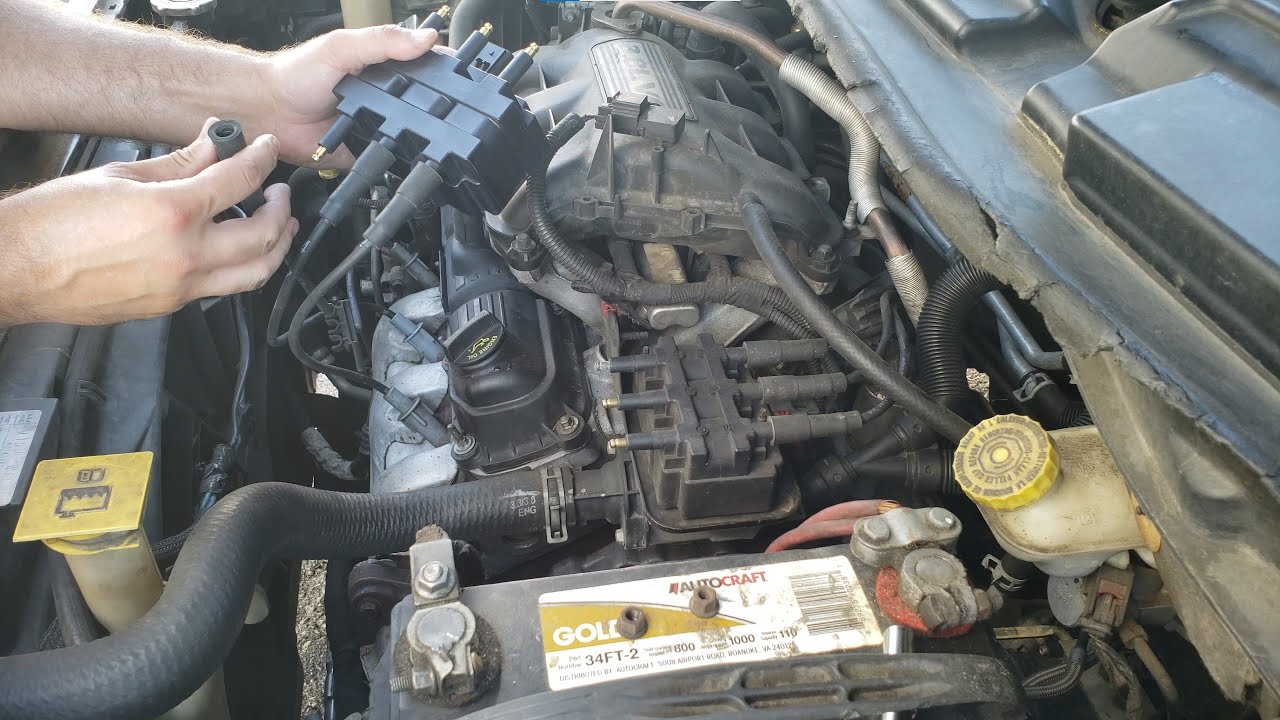

  3. Gently remove the old coil pack: After removing the mounting bolts, carefully lift the old coil pack off of the engine block. Be mindful of any wires or cables still attached to the coil pack, and disconnect them if necessary.
  4. Inspect the old coil pack: Take a moment to inspect the old coil pack for any visible signs of damage, such as cracks or corrosion. This will help you determine if the coil pack was indeed the cause of the issues you were experiencing.

By following these steps, you can safely and effectively remove the old coil pack from your Grand Caravan. Next, we’ll move on to installing the new coil pack to restore your vehicle’s ignition system to optimal performance.



Step 5: Install the New Coil Pack

Now that the old coil pack has been removed, it’s time to install the new coil pack in your Grand Caravan. Follow these steps to ensure a proper installation:

  1. Position the new coil pack: Take the new coil pack and position it in the same location where the old coil pack was removed. Make sure it sits flush against the engine block and aligns with the mounting holes.
  2. Connect the electrical connectors: Carefully reconnect the electrical connectors to the corresponding terminals on the new coil pack. Ensure that they are fully seated and secure, and double-check that they match the configuration you noted or photographed earlier.
  3. Insert and tighten the mounting bolts: With the electrical connectors securely attached, insert the mounting bolts into their respective holes. Use your socket and ratchet to tighten the bolts, being careful not to overtighten and damage the coil pack or the engine block.
  4. Reconnect any additional wires or cables: If there were any wires or cables attached to the old coil pack that were disconnected during the removal process, now is the time to reconnect them. Ensure they are properly secured and routed away from any hot or moving components.

With these steps, you can successfully install the new coil pack in your Grand Caravan, restoring the proper functioning of the ignition system. However, before completing the process, it’s essential to reassemble any vehicle components that were removed or moved during the removal process.



Step 6: Reassemble the Vehicle Components

After installing the new coil pack in your Grand Caravan, it’s important to reassemble any vehicle components that were removed or moved during the removal process. Follow these steps to ensure everything is put back together properly:

  1. Reattach any removed wires or cables: If you disconnected any wires or cables during the removal process, now is the time to reattach them. Make sure they are correctly routed and securely connected to their respective components.
  2. Replace any removed covers or panels: If you had to remove any covers or panels to access the coil pack, carefully reposition and secure them back in place. Ensure that all clips and fasteners are properly engaged.
  3. Reconnect the battery: With everything else reassembled, it’s time to reconnect the battery. Reattach the negative terminal and tighten it securely. This will restore power to the vehicle and allow you to test the coil pack replacement.

By following these steps, you can reassemble all the necessary vehicle components and ensure that everything is in its proper place. With the reassembly complete, we can move on to the final step: testing the coil pack replacement.



Step 7: Test the Coil Pack Replacement

After replacing the coil pack and reassembling your Grand Caravan, it’s essential to test the new coil pack to ensure it’s functioning properly. Follow these steps to perform a successful test:

  1. Start the engine: Turn the ignition key and start the engine. Listen for any irregular noises or vibrations that could indicate a problem with the coil pack.
  2. Observe engine performance: As the engine runs, pay close attention to its performance. Check for smooth idling, responsive acceleration, and a noticeable improvement in power delivery.
  3. Monitor for any warning lights: Keep an eye on your vehicle’s dashboard for any warning lights that may illuminate. If the check engine light or any other relevant warning lights come on, it may indicate an issue with the new coil pack or another component.
  4. Perform a test drive: Take your Grand Caravan for a short test drive to assess its overall performance. Pay attention to any hesitations, misfires, or lack of power that could indicate a problem with the coil pack.
  5. Recheck connections: After the test drive, carefully inspect all the connections around the new coil pack to ensure they are still securely attached. Any loose or disconnected connections should be reconnected and secured properly.

By following these steps, you can effectively test the coil pack replacement in your Grand Caravan. If everything goes smoothly and you notice improved engine performance without any warning lights, you can consider the coil pack replacement a success.



Remember, if you encounter any issues or are unsure about the results of the test, it’s best to consult a professional mechanic for further assistance.



Conclusion

Replacing the coil pack in your Grand Caravan is a straightforward process that can significantly improve the performance and drivability of your vehicle. By following the steps outlined in this guide and using the necessary tools, you can successfully replace the coil pack and restore your ignition system’s functionality.



Remember, it’s important to gather all the required tools before starting the process and to prepare your vehicle by turning off the engine and disconnecting the battery. Locating the coil pack, removing the old one, and installing the new coil pack requires careful attention to detail. Take note of the electrical connectors, mounting bolts, and surrounding wires to ensure everything is properly reconnected during the reassembly phase.



Once everything is back together, it’s crucial to test the coil pack replacement. Start the engine, observe its performance, and monitor for any warning lights or irregularities. A successful test drive will confirm the effectiveness of the replacement.



By following this guide and conducting the necessary steps, you can replace the coil pack on your Grand Caravan, improving its ignition system and overall performance. However, if you’re uncertain about any part of the process, it’s always recommended to consult a professional mechanic for assistance.



With a properly functioning coil pack, you can enjoy a smoother-running engine and enhanced driving experience in your Dodge Grand Caravan. Happy driving!
